Sample · Timing Pulley Generator

XL timing pulleys with inch bores and inch set screws

Imperial down to the hardware: an XL belt, ¼" and ⅜" shafts, and #8-32 and #10-24 set screws in captured nuts.

XL (0.200″ pitch)Captured nutInch screwsSeparate top flangeInch bores

Build it with your AI

Using the CheapCAD Tools connector, design a two-pulley timing belt drive: XL belt, about 120 mm between centres, set screws in captured nuts. Pulley 1: 20 teeth, ¼" bore, a hub 18 mm across and 9 mm tall with a #8-32 set screw, and printed flanges with the top flange printed as a separate part. Pulley 2: 30 teeth, ⅜" bore, a hub 22 mm across and 10 mm tall with a #10-24 set screw. Check the design, apply any Auto-fix it suggests, then export both pulleys as STL and give me the download link.

Paste it into Claude, ChatGPT or any AI app with the CheapCAD Tools connector, and it designs this drive with you, checks it and hands you the files. How to connect your AI.

What's in this design

The drive

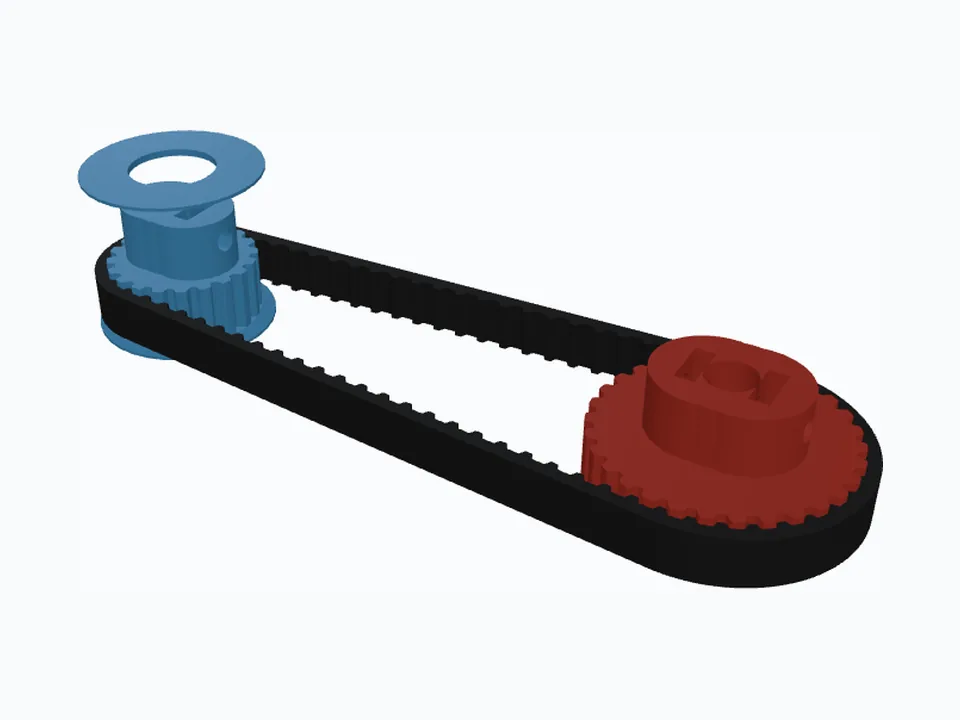

  • XL (0.200″ pitch) belt, 10 mm wide, 73 teeth (370.84 mm long)
  • Centre distance 121.65 mm; ratio 20 : 30 (1 : 1.5)

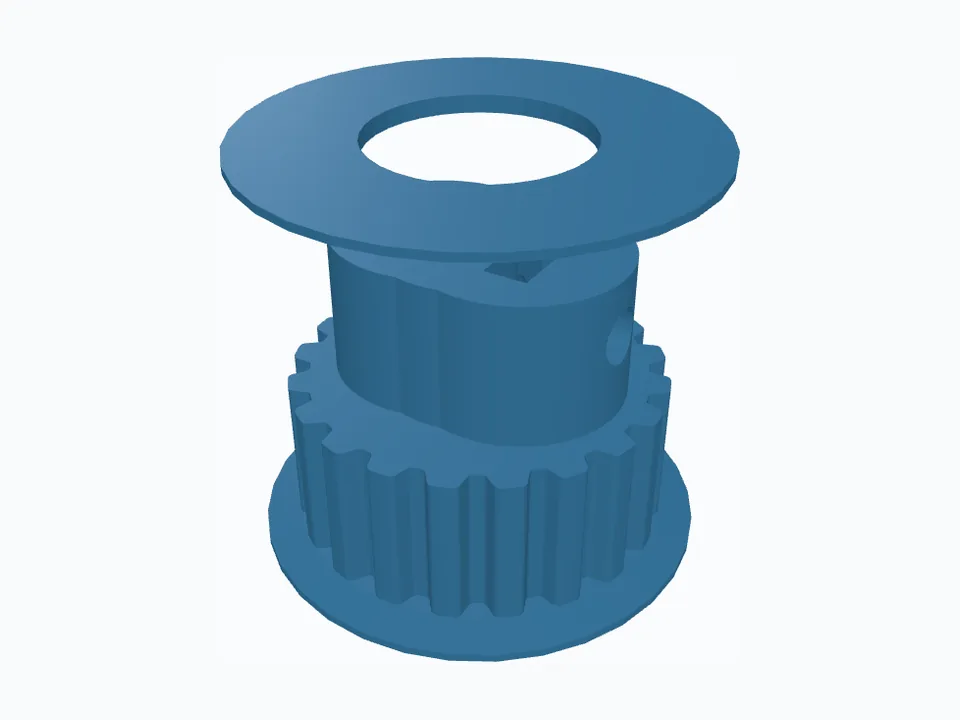

Pulley 1

  • 20 teeth
  • ¼″ (6.35 mm) round bore
  • Hub Ø18 × 9 mm, two #8-32 set screws in captured nuts
  • Printed flanges, 1.5 mm thick, reaching 3 mm past the teeth; the top flange prints separately

Pulley 2

  • 30 teeth
  • ⅜″ (9.525 mm) round bore
  • Hub Ø22 × 10 mm, two #10-24 set screws in captured nuts

In the free STL zip

  • Imperial-XL-20T+flange.stl — pulley 1, 20 teeth
  • Imperial-XL-30T-P2.stl — pulley 2, 30 teeth
  • ImperialXL-20T-3DP-upper-flange.stl — pulley 1's top flange, printed on its own

Free STLs are CC BY 4.0, printed size without print compensation. Open the design to change anything, tune the fit for your printer, or download STEP, DXF, SVG and the belt.

Dimensions — 14 figures from the generator
Pulley 1Pulley 2
Pitch diameter32.34 mm48.51 mm
Outside diameter31.83 mm48.00 mm
Root diameter28.53 mm44.70 mm
Groove depth1.65 mm1.65 mm
Pitch line differential0.25 mm0.25 mm
Belt width10.00 mm10.00 mm
Face width (belt + clearance)12.90 mm12.90 mm
Minimum face width11.00 mm12.80 mm
Flange outside diameter37.83 mm—
Flange past the OD3.00 mm—
Minimum flange height1.00 mm—
Belt73 teeth · 370.84 mm
Centre distance121.65 mm
Drive ratio20 : 30 · 1 : 1.5

Read from the generator's Dimensions panel for this design, which opens with no warnings.
